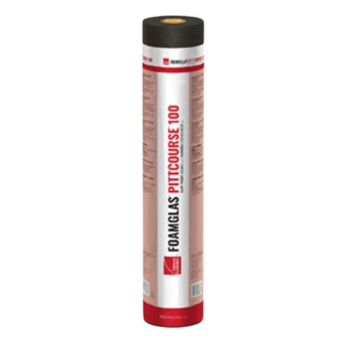

PITTCOURSE™ 100 High Performance Damp Proof Course

Description

PITTCOURSE™ 100 DPC is a high-performance, modified bitumen sheet designed as a non-metallic interleaving layer for FOAMGLAS® insulation in tank base systems. Comprising a reinforced polyester base and finished with fine sand on both sides, it acts as a durable damp proof course that protects against moisture ingress in both cold and cryogenic tank applications.

Specifications

Composition: Modified bitumen with polyester reinforcement
Color: Black
Thickness: 3.0 ± 0.3 mm (118 ± 12 mil)
Dimensions:
- Width: 1.0 m ± 0.02 (39.4 ± 0.8 in)
- Length: 8.0 m ± 0.10 (26.2 ± 0.3 ft)
Weight: 3.63 ± 0.25 kg/m² (0.74 ± 0.05 lbs/ft²)
Service Temperature:
- Maximum: 65°C (149°F)
- Minimum: -180°C (-292°F)
Softening Point: 100°C ± 20°C (212°F ± 36°F)
Application Temperature: Minimum 0ºC (32°F)
Water Tightness: Passes EN 1928 (B) and EN 1296 (post-aging)
Tensile Strength:
- Machine Direction (MD): ≥ 600 N/50 mm (≥ 68 lbs. Force/in.)
- Transverse Direction (TD): ≥ 550 N/50 mm (≥ 63 lbs. Force/in.)
Tear Resistance:
- MD: ≥ 165 N (≥ 37 lbs. Force)
- TD: ≥ 241 N (≥ 54 lbs. Force)
Low Temperature Flexibility: -15°C (-5°F)
Fire Resistance: Classified as Class E per EN 13501-1

Features

Durable Damp Proof Layer: Provides a reliable moisture barrier in FOAMGLAS® tank base insulation systems.
High Tensile and Tear Resistance: Ensures stability and durability in demanding environments.
Flexible in Low Temperatures: Retains flexibility and strength even at cryogenic temperatures.
Easy Installation: Supplied in rolls with edges that can be tightly butted, facilitating straightforward application over insulation blocks.

Certifications & Compliance

Environmental Compliance: Product rolls should be stored in a dry, heated area to prevent damage.
Handling Recommendations:
- Avoid contact with solvents (e.g., petroleum spirit, diesel oil).
- Store on end and protect from mechanical damage; avoid prolonged exposure to temperatures above 35°C (95°F).
