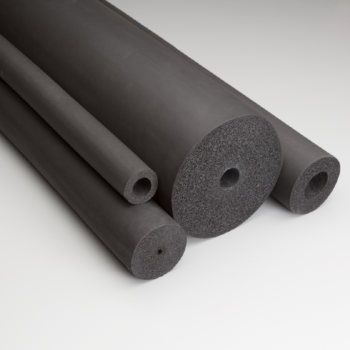

AEROFLEX Self-Seal™ & Self-Seal LDP™ Pipe Insulation

Description

Aeroflex® Self-Seal™ EPDM Pipe Insulation is a closed-cell elastomeric foam insulation designed for HVAC, VRF, chilled water, refrigeration, and hot and cold water plumbing applications. This insulation provides long-lasting thermal performance and moisture resistance, featuring a self-sealing, dual-tape closure system that simplifies installation. Its unique EPDM composition offers superior environmental stability, UV resistance, and durability, making it suitable for both indoor and outdoor applications.

Specifications

Thermal Conductivity (K):
- 50°F (10°C): 0.237 (0.0342 W/m•K)
- 75°F (24°C): 0.245 (0.0353 W/m•K)
- 100°F (38°C): 0.252 (0.0363 W/m•K)
Service Temperature: -297°F to 257°F (-183°C to 125°C)
Water Vapor Permeability: Max 0.02 perm-inch (ASTM E96)
UV and Ozone Resistance: Minimal cracking (ASTM G7, D1171)
Flammability:
- 25/50 rated (ASTM E84, UL723, CAN/ULC-S102)
- Self-extinguishing (ASTM D635)
VOC Emissions: < 0.5 mg/m³ (CDPH Standard Method v1.2)

Features

Fast and Simple Installation: Dual-closure system eliminates the need for field-applied adhesives.
Built-in Vapor Retarder: Eliminates the need for supplemental vapor barriers in most applications.
UV and Environmental Resistance: Outperforms NBR/PVC insulation, offering enhanced longevity.
Corrosion Protection: Non-corrosive to stainless steel and copper piping.
Sustainable:
- GREENGUARD Gold Certified
- Environmental Product Declaration (EPD) and Health Product Declaration (HPD) available
